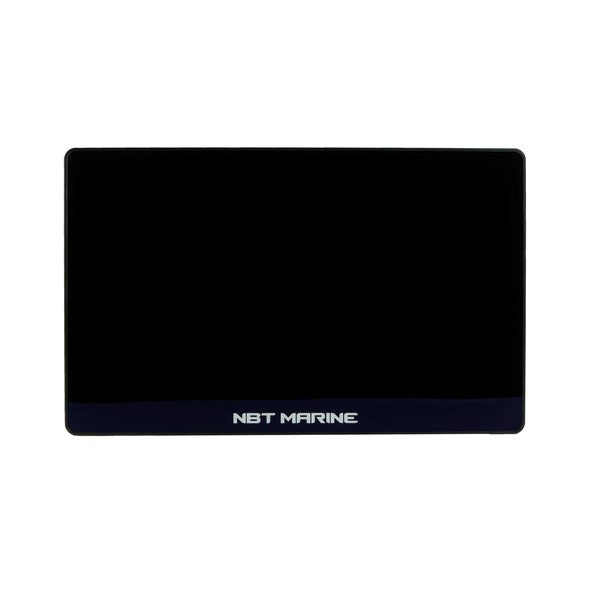

NBT Marine 22" Battleship Screen featuring a sleek black rectangular design with NBT Marine branding for use with marine electronics and fishing tackle setups.

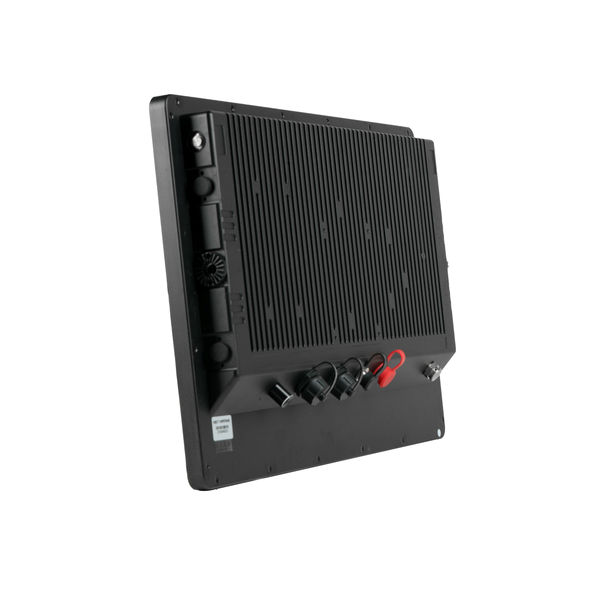

NBT Marine 22" Battleship Screen with a rugged black housing featuring multiple connection ports including a red power terminal, designed for durable marine electronics use.

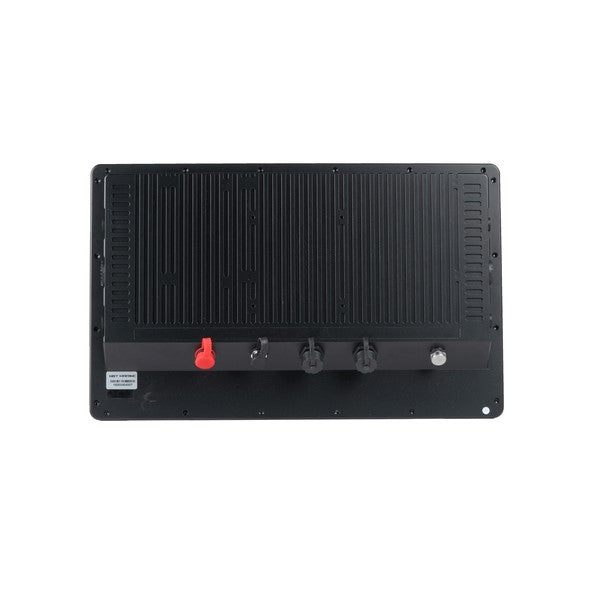

NBT Marine 22" Battleship Screen, a black rectangular marine electronic display with ventilation grooves, various control knobs, and connector ports on the side, designed for fishing tackle and marine use.
NBT Marine 22" Battleship Screen cable featuring a black coaxial wire with a red and black waterproof connector, designed for marine electronics and fishing tackle integration.
NBT Marine 22" Battleship Screen black coaxial cable with connectors, designed for marine electronics and fishing tackle applications in watersports and fishing environments.

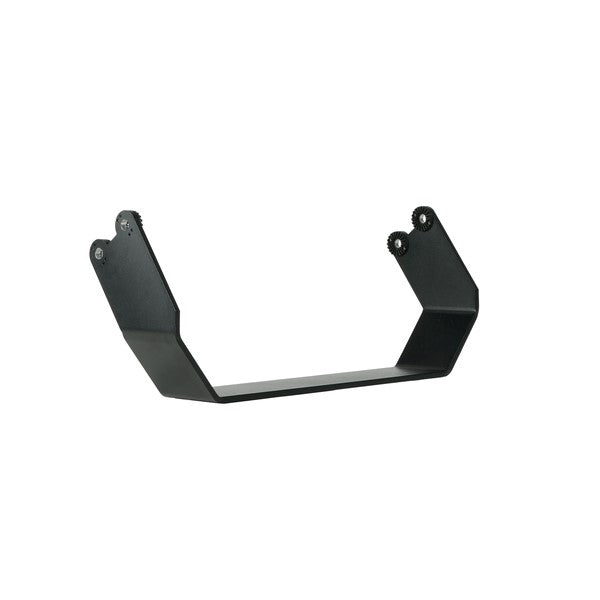

NBT Marine 22" Battleship Screen black metal mounting bracket with angled arms and gear-like adjustment components for secure attachment in marine electronics setups.

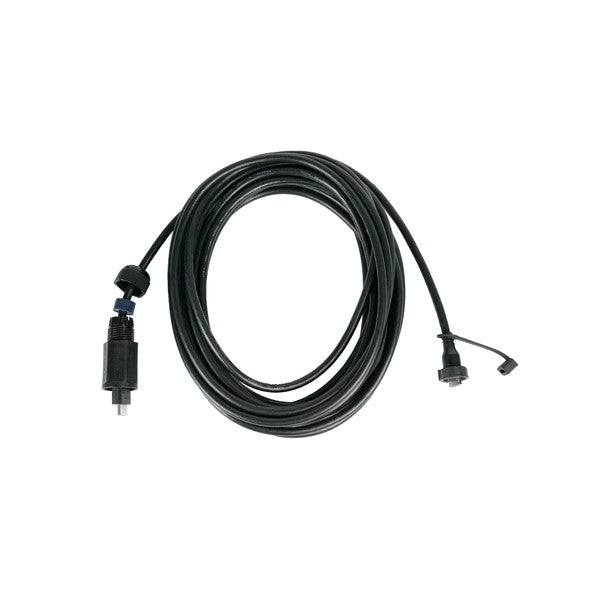

Black coiled cable with circular and rectangular connectors at each end, designed for marine electronics, shown isolated on white background, NBT Marine 22" Battleship Screen.

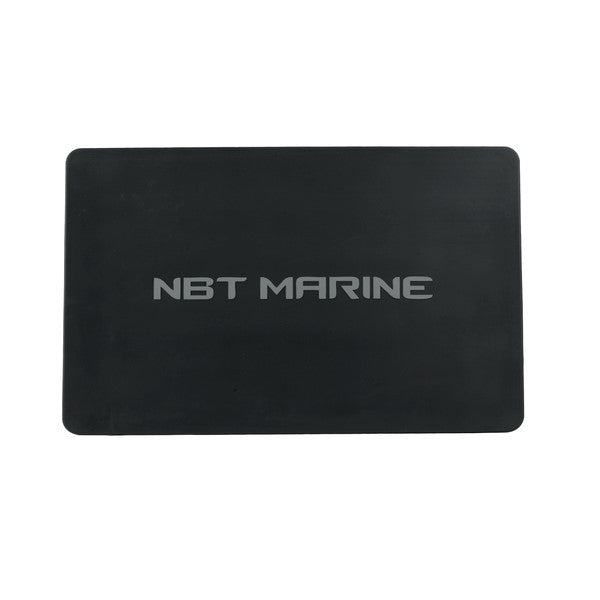

NBT Marine 22" Battleship Screen is a black, rectangular protective cover with the brand name printed in gray, designed for marine electronics and fishing tackle.

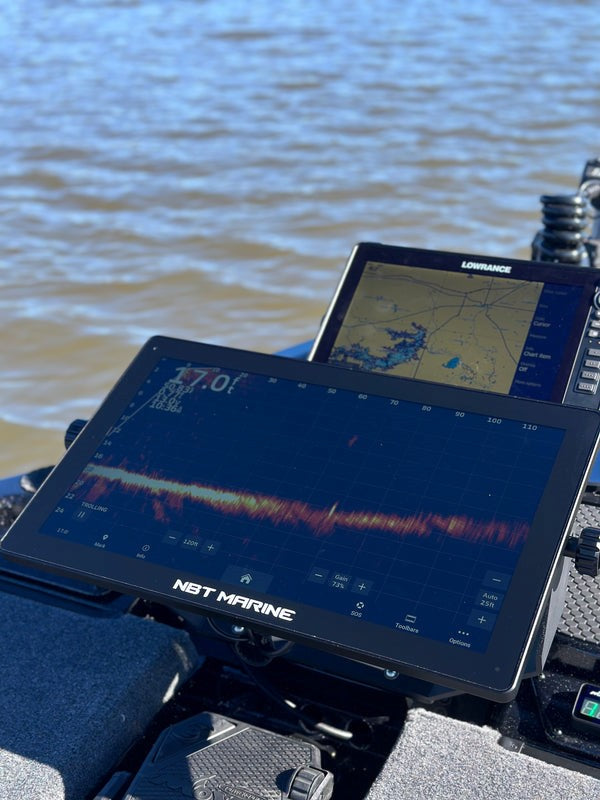

NBT Marine 22" Battleship Screen displaying sonar data mounted on a boat console with water and a Lowrance marine GPS screen in the background.

NBT Marine

NBT Marine 22" Battleship Screen

$3,999.99
SKU: NBT22Battleship
Pickup currently unavailable at Thorne Bros - 10091 Central Ave. - PH# 763.572.3782

NBT Marine 22" Battleship Screen

Thorne Bros - 10091 Central Ave. - PH# 763.572.3782

Pickup currently unavailable

10091 Central Ave NE
Blaine MN 55434
United States

763-572-3782

Thorne Bros. Marine Electronics - 10130 Davenport St NE Suite 160 - PH# 763.572.3782

Pickup currently unavailable

10130 Davenport St NE
Suite 160
Blaine MN 55449
United States

+17635723782
22" NBT Battleship Unit
The All new 22 Inch Battleship Units comes as a Plug And Play kit ready to link to your Garmin 86XX or 1243/1643 units. (see below for compatible unit lists)


Specifications
  • Display Resolution - 1920x1080
  • Weight - 7.5KG (16.5LBS)
  • Waterproof - IP67
  • Mounting Options - Included gimbal
  • Touch screen
  • Dimensions 21.6" x 13" x 23.1" diagonal
  • Display Size 21.6" diagonal
  • Glass Type - Optical Bonding, with Anti-Glare  UV coatings
  • Brightness - 1500 NITS (vivid sunlight readable)
  •  Operational Temperature - -20c to +75C (-4F to +170F)
  • Touch Type - 10 Points Capacitive touch, Touch ON/OFF control
  • Remote OSD - Included remote control
  • NOTE - Polarization Features have been Upgraded


Sonar Features and Compatibility
  • LIVESCOPE - All compatible units up to 2 Live scopes
  • SIDE VU / DOWN VU - All compatible XSV units or GCV box
  • Up to 6 Split screen boxes!


Cords/Cables
  • HDMI CABLE - 8 meters (26 feet)

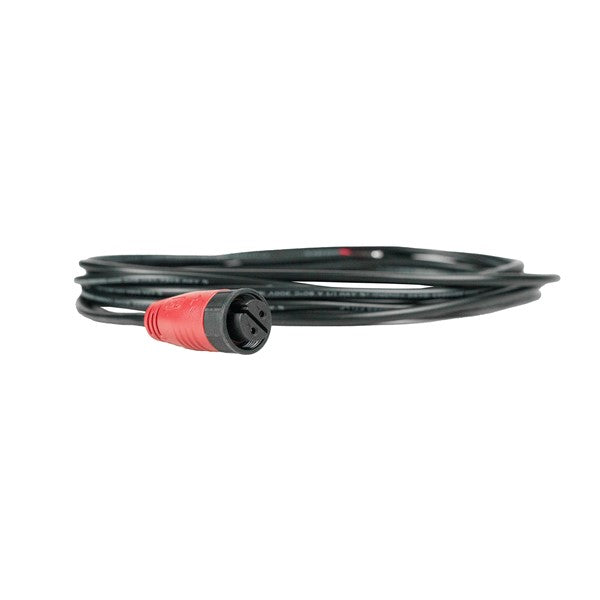

  • DC POWER CABLE - 4 meters (13 feet)

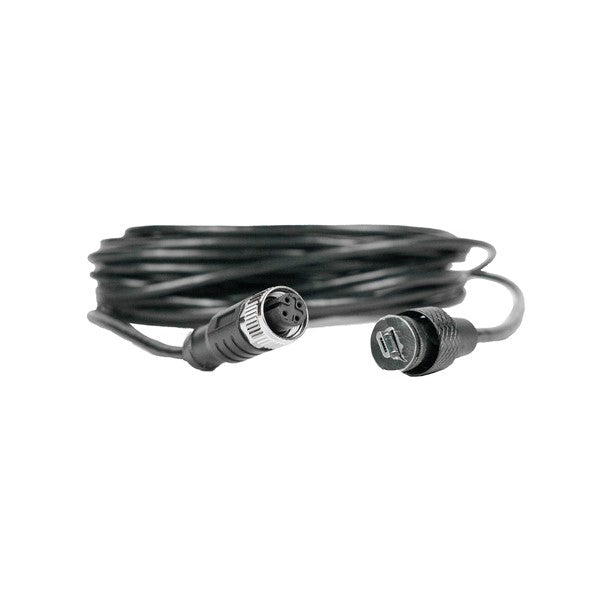

  • USB CABLE - 8 meters (26 feet)


Electrical Features
  • POWER INPUT - 1 x DC 10V to 28V
  • TYPICAL CURRENT DRAW AT 12 VDC - 4.2 A
  • MAXIMUM CURRENT DRAW AT 12 VDC - 6A

Compatible Chart plotters
  • GARMIN 8700
  • GARMIN 1643 (XSV) or NON
  • GARMIN 8610 8410 (XSV) or NON - some limitations
  • GARMIN 8612 8412 (XSV) or NON
  • GARMIN 8616 8416 (XSV) or NON
  • GARMIN 1243 (XSV) or NON - some Limitations
