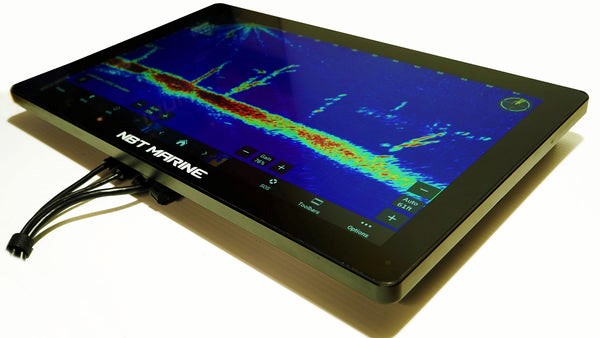

NBT Marine 16" Destroyer Screen showing multicolor sonar imaging on a black touchscreen device with connecting cables for marine electronics use.

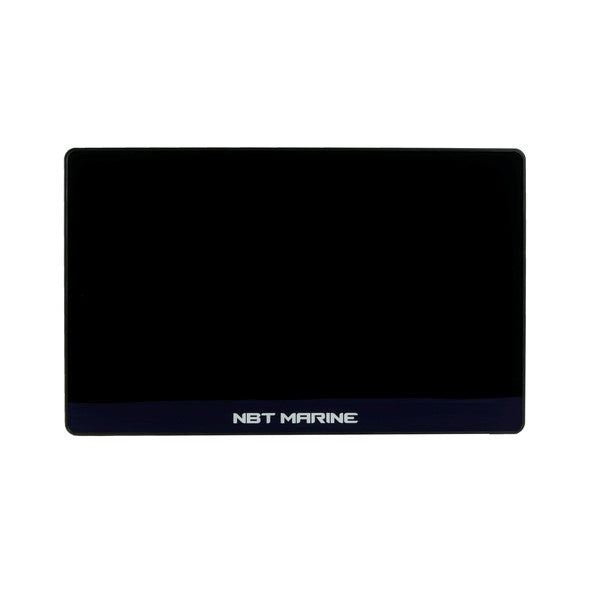

NBT Marine 16" Destroyer Screen featuring a sleek black rectangular design with a blue lower border and white text, ideal for marine electronics and fishing tackle setups.

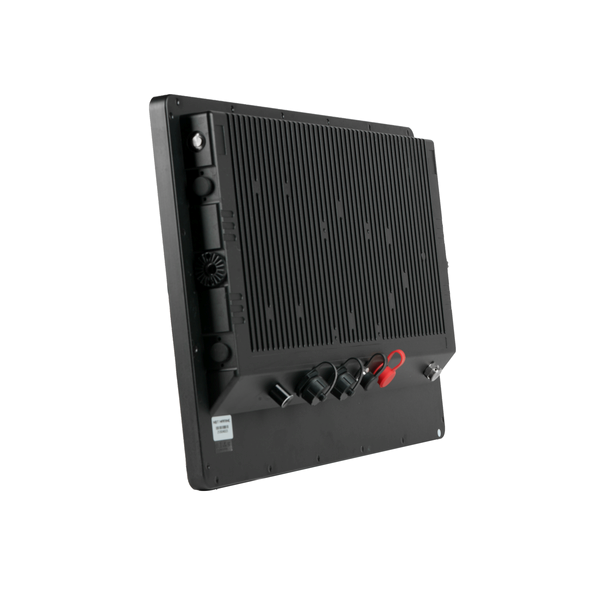

Back view of the NBT Marine 16" Destroyer Screen showing black ribbed surface with various ports and connectors including a red-capped terminal and multiple black connection points.

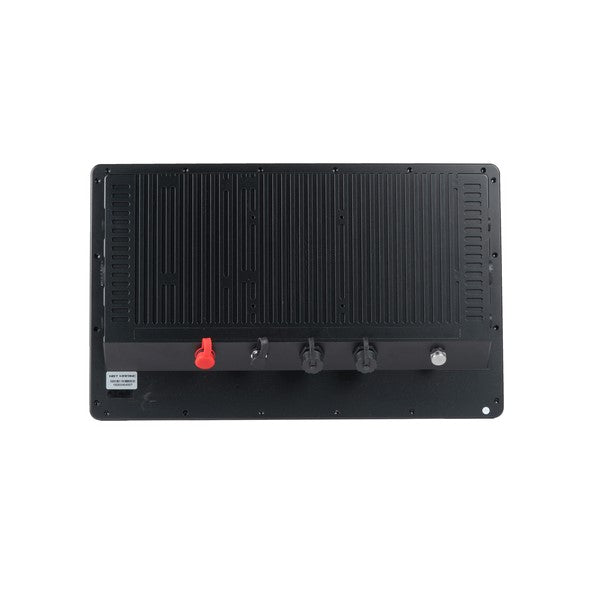

NBT Marine 16" Destroyer Screen with a rugged black casing, ventilation slats on the back, multiple ports, and connectors designed for marine electronics use.
NBT Marine 16" Destroyer Screen" shows a coiled black cable with a red and black connector, designed for marine electronics and fishing tackle applications.

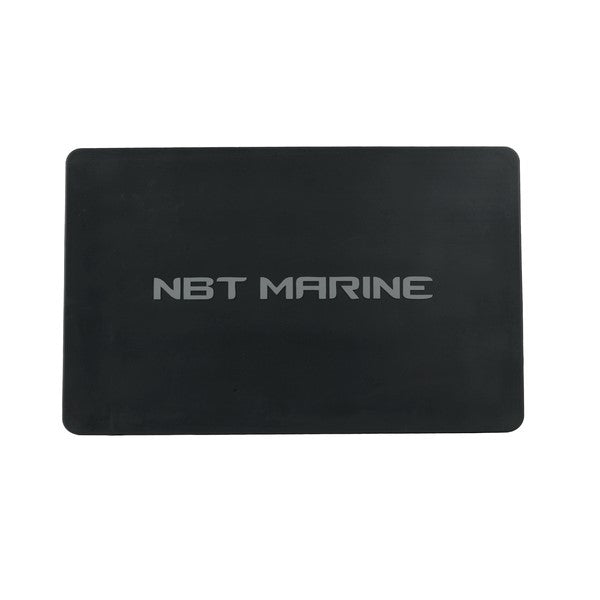

NBT Marine 16" Destroyer Screen featuring a solid black protective cover with the NBT Marine logo in gray, designed for durability and marine electronics protection.
Coiled black cable with a circular multi-pin connector on one end and a square-shaped connector on the other, designed as the NBT Marine 16" Destroyer Screen accessory.
Metal black mounting bracket with angled arms and gear-like notches on each end, designed for secure attachment in marine or fishing applications, NBT Marine 16" Destroyer Screen.

NBT Marine

NBT Marine 16" Destroyer Screen

$3,199.99
SKU: NBT16Destroyer
Pickup currently unavailable at Thorne Bros - 10091 Central Ave. - PH# 763.572.3782

NBT Marine 16" Destroyer Screen

Thorne Bros - 10091 Central Ave. - PH# 763.572.3782

Pickup currently unavailable

10091 Central Ave NE
Blaine MN 55434
United States

763-572-3782

Thorne Bros. Marine Electronics - 10130 Davenport St NE Suite 160 - PH# 763.572.3782

Pickup currently unavailable

10130 Davenport St NE
Suite 160
Blaine MN 55449
United States

+17635723782
16" NBT Destroyer Unit
The All new 16 Inch Destroyer Units comes as a Plug And Play kit ready to link to your Garmin 86XX or 1243/1643 units. (see below for compatible unit lists)


Specifications
  • Display Resolution - 1920x1080
  • Weight - 4.5KG (10LBS)
  • Waterproof - IP67

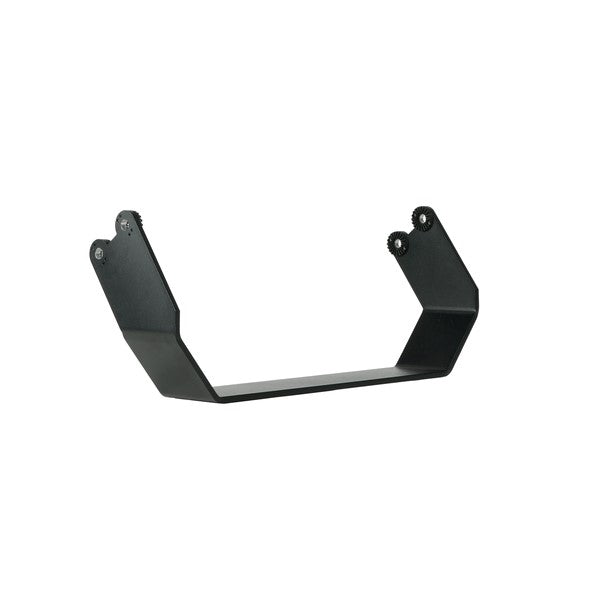

  • Mounting Options - Included gimbal
  • Touch screen
  • Dimensions 13.6" x 8" x 16.5" diagonal
  • Display Size 16.5" diagonal
  • Glass Type - Optical Bonding, with Anti-Glare  UV coatings
  • Brightness - 1500 NITS (vivid sunlight readable)
  •  Operational Temperature - -20c to +75C (-4F to +170F)
  • Touch Type - 10 Points Capacitive touch, Touch ON/OFF control
  • Remote OSD - Included remote control
  • Rugged Shock - 20G
  •  NOTE - Polarization has been upgraded



Sonar Features and Compatibility
  • LIVESCOPE - All compatible units up to 2 Live scopes
  • SIDE VU / DOWN VU - All compatible XSV units or GCV box
  • Up to 6 Split screen boxes!


Cords/CablesHDMI CABLE - 8 meters (26 feet)

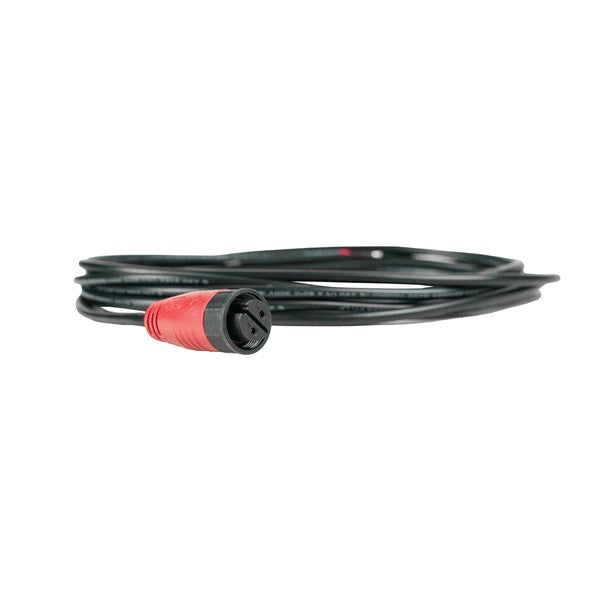

  • DC POWER CABLE - 4 meters (13 feet)

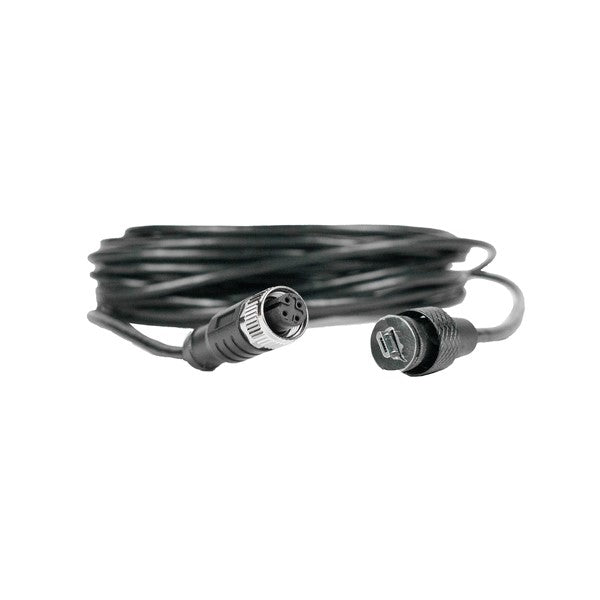

  • USB CABLE - 8 meters (26 feet)



Electrical Features
  • POWER INPUT - 1 x DC 10V to 28V
  • TYPICAL CURRENT DRAW AT 12 VDC - 4.2 A
  • MAXIMUM CURRENT DRAW AT 12 VDC - 6A

Compatible Chart plotters
  • GARMIN 8700
  • GARMIN 1643 (XSV) or NON
  • GARMIN 8610 8410 (XSV) or NON - some limitations
  • GARMIN 8612 8412 (XSV) or NON
  • GARMIN 8616 8416 (XSV) or NON
  • GARMIN 1243 (XSV) or NON - some limitations
