Humminbird
Humminbird XM 14 HW MSI T - SOLIX MEGA SI+, DI+, DUAL SPECTRUM CHIRP W/ TEMP TRANSOM TRANSDUCER 710292-1
Humminbird XM 14 HW MSI T - SOLIX MEGA SI+, DI+, DUAL SPECTRUM CHIRP W/ TEMP TRANSOM TRANSDUCER 710292-1
Thorne Bros - 10091 Central Ave. - PH# 763.572.3782
10091 Central Ave NE
Blaine MN 55434
United States
Fish-Lectronics - 1109 Cty. Rd. 10 - PH# 763.571.1277
1109 County Road 10
Minneapolis MN 55432
United States

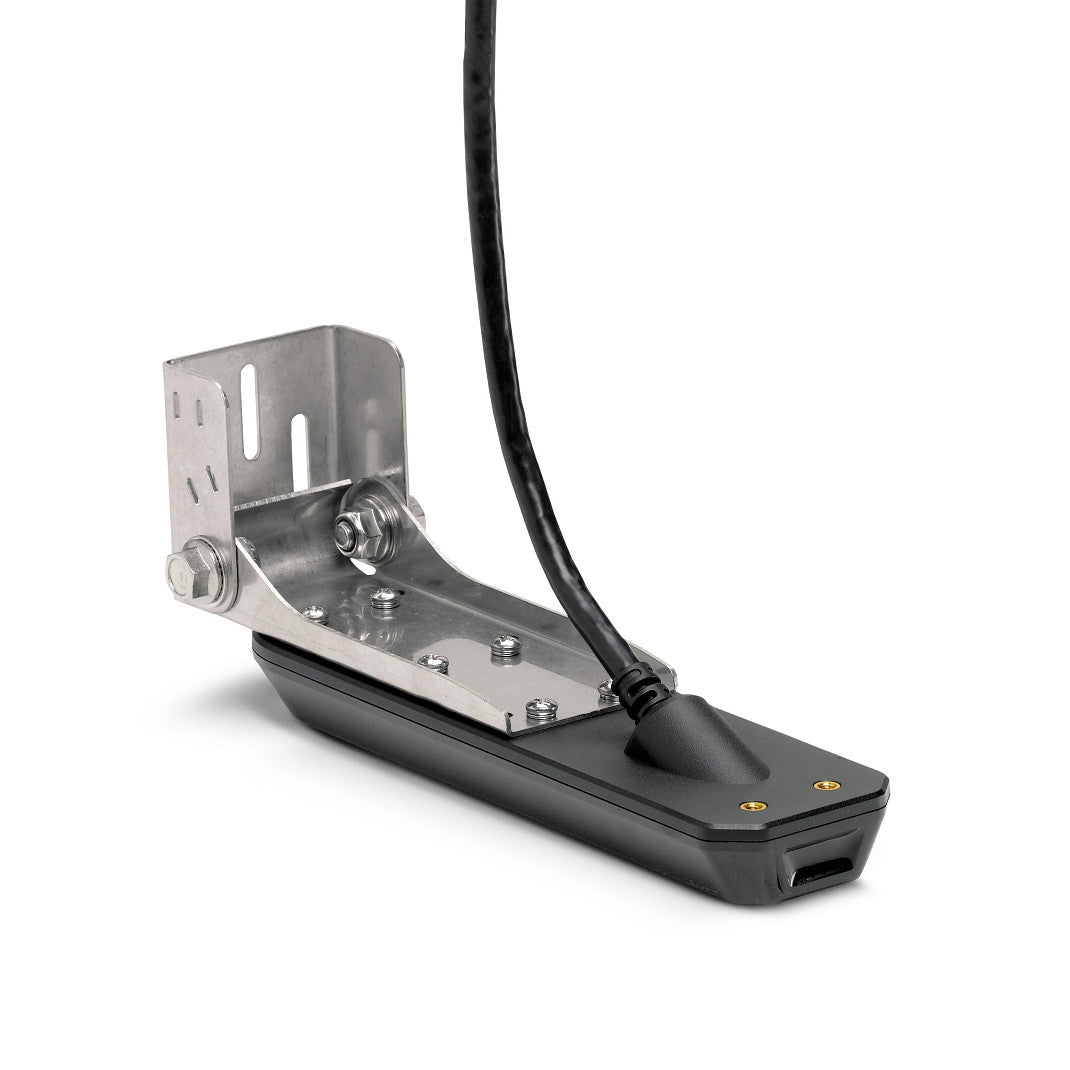

Transom Mount, MEGA Side Imaging+, MEGA Down Imaging +, 800kHz/455 kHz and 1.2 MHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor
- Compatible with: All APEX models, All SOLIX CHIRP MEGA SI+ G2 and G3 models

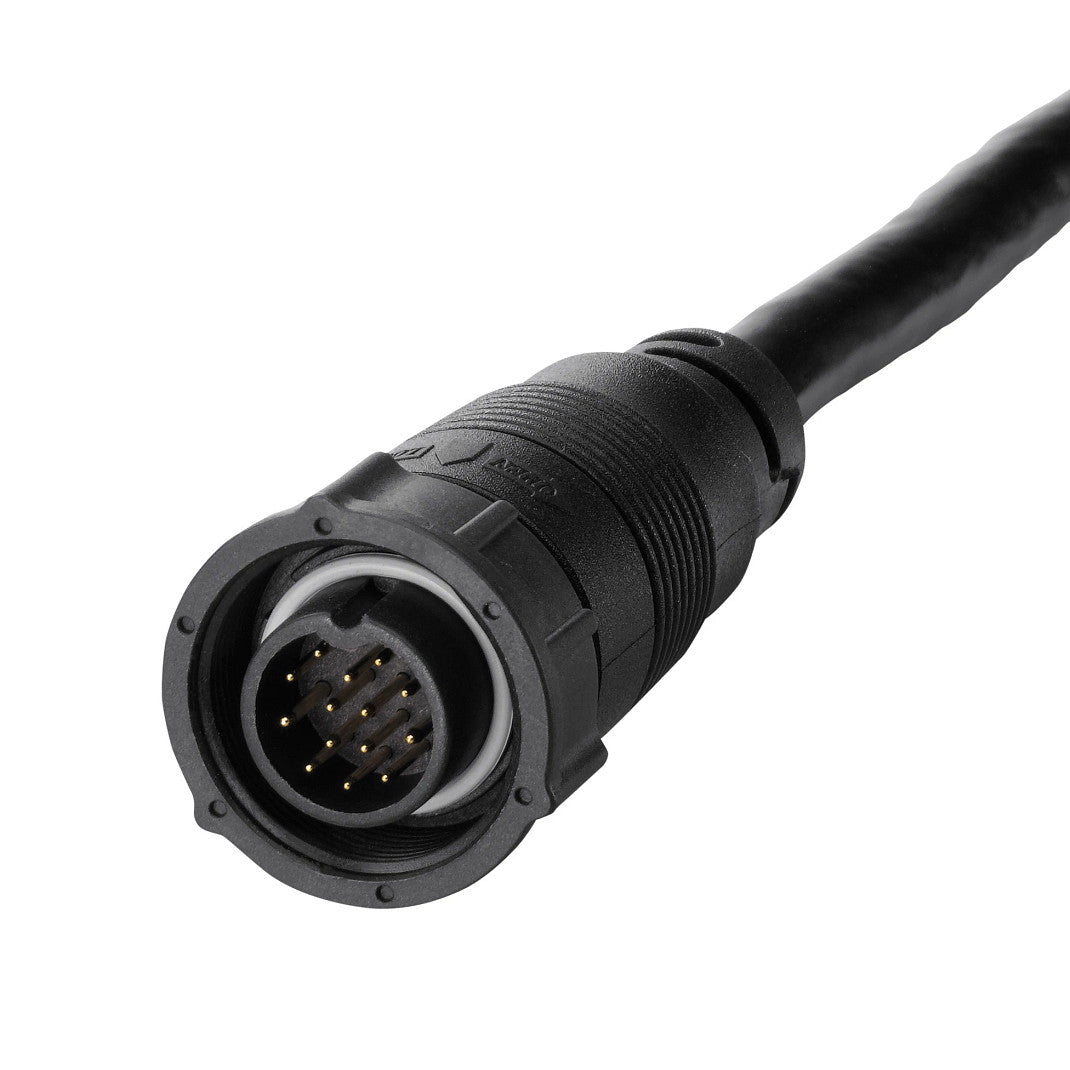

- Cable Length: 20 Feet
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m)
- MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
Rear/Fore Grip Handle Material

cork
A Classic look and feel. We use only the highest grade of cork when making our custom rods. This is the standard option, and our most popular.

Duracork
Duracork is an inorganic material that will not dry-rot or deteriorate. It is incredibly durable, and slightly lighter then regular cork. It has a rough texture, but smooths out after use.
main guide wrap nylon

Black 862

Ghost Grey 819

fire red 325

merlot 349

bluegill 422

cobalt 455

island lagoon 413

purple 631

oak leaf 525

olive 558

guacamole 513
main guide wrap colorfast

ghost grey 819

merlot 349

bluegill 422

colbalt 455

fire red 325

oakleaf 525

purple 631

olive 588

guacamole 513

island lagoon 413

taxi 119

neon orange 225

neon yellow 122

neon green 552

neon pink 361
trim band metallic

metallic gold 9130

metallic blue steel 9850

metallic pewter 9830

metallic copper 9710

metallic deep blue 9460

metallic aqua 9410

metallic red 9300

metallic lime 9510

metallic green 9520

metallic purple 9600

metallic fuchsia 9610

metallic silver 9860
trim band colorfast

ghost grey 819

merlot 349

bluegill 422

colbalt 455

fire red 325

oakleaf 525

purple 631

olive 588

guacamole 513

island lagoon 413

taxi 119

neon orange 225

neon yellow 122

neon green 552

neon pink 361
