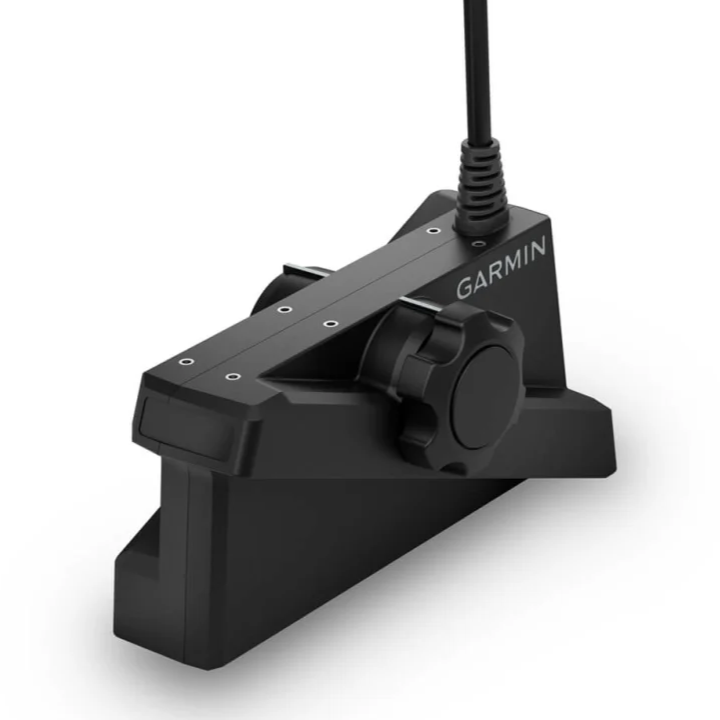

Black Garmin Livescope XR LVS62 (Transducer ONLY) - 010-02719-10 marine electronics transducer with cable, designed for precision fishing sonar and underwater imaging.

Garmin

Garmin Livescope XR LVS62 (Transducer ONLY) - 010-02719-10

$2,499.99
SKU: 010-02719-10
Quantity:
Pickup available at Thorne Bros - 10091 Central Ave. - PH# 763.572.3782 Usually ready in 24 hours

Garmin Livescope XR LVS62 (Transducer ONLY) - 010-02719-10

Thorne Bros - 10091 Central Ave. - PH# 763.572.3782

Pickup available, usually ready in 24 hours

10091 Central Ave NE
Blaine MN 55434
United States

763-572-3782

Thorne Bros. Marine Electronics - 10130 Davenport St NE Suite 160 - PH# 763.572.3782

Pickup currently unavailable

10130 Davenport St NE
Suite 160
Blaine MN 55449
United States

+17635723782

THE BEST OF THE BEST JUST HIT THE OPEN WATER

You didn’t think it could get better, but it did with the extended range of the LiveScope XR System. It’s the latest in LiveScope technology, now for coastal and open-water fishing.



  • LiveScope XR LVS62 transducer
  • Perspective mount (LiveScope XR LVS62 transducer only)
  • Trolling motor barrel mount
  • Shaft mount
  • Power cable
  • Documentation



General
DIMENSION

LVS62 transducer: 8.20” x 3.98” x 2.76” (20.8 x 10.1 x 7.0 cm)
WEIGHT

LVS62 transducer with cable: 3.92 lbs (1.78 kg)
LVS62 transducer without cable: 2.66 lbs (1.21 kg)
WATERPROOF IPX7
TRANSDUCER BEAMWIDTH 20° x 135°
TRANSDUCER CABLE LENGTH 20 ft
TRANSDUCER NUMBER OF PINS 21
TEMPERATURE RANGE LVS62 Transducer: Operating: 0 C to 40 C

Sonar Features & Specifications
FREQUENCY 265 - 550 kHz
MAXIMUM DEPTH Freshwater: Down and Forward: 500’ (152.0 m)
Saltwater: Down and Forward: 350’ (106.0 m)
SONAR TYPE Live
TARGET SEPARATION @100' 22"
PERSPECTIVE MODE MOUNT INCLUDED

Connections
GARMIN MARINE NETWORK PORTS

1 (small connector)

Electrical Features
POWER INPUT 10-32 V
POWER USAGE 21 W typical, 58 W max
TRANSMIT POWER 500 W
FUSE 7.5 A
COMPASS-SAFE DISTANCE 7" (0.18 m)
