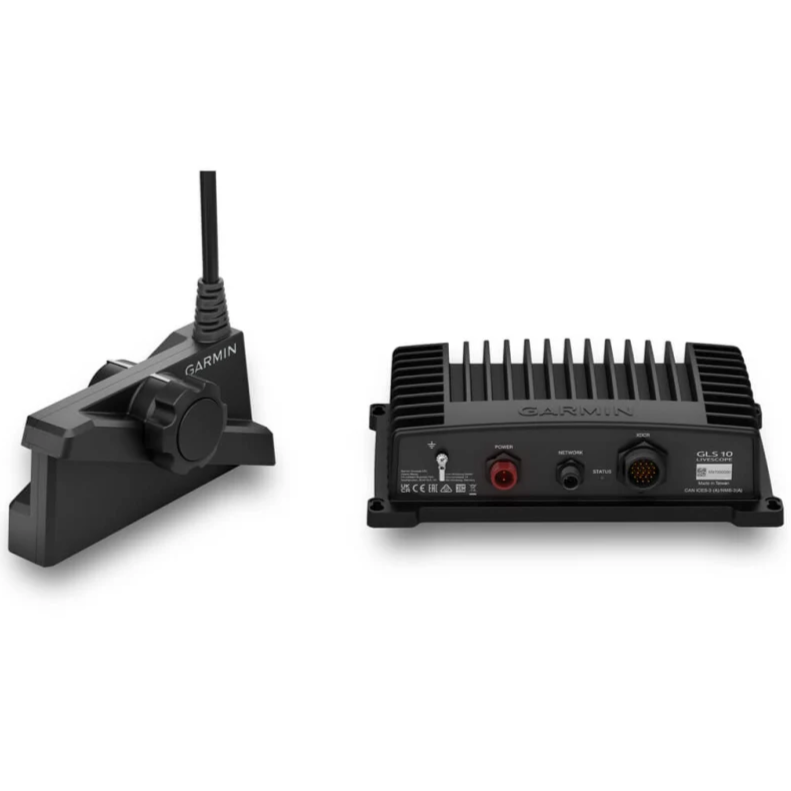

Garmin Livescope Plus LVS-34 w/ GLS10 - 010-02706-00
Garmin Livescope Plus LVS-34 w/ GLS10 - 010-02706-00
Thorne Bros - 10091 Central Ave. - PH# 763.572.3782
10091 Central Ave NE
Blaine MN 55434
United States
Thorne Bros. Marine Electronics - 10130 Davenport St NE Suite 160 - PH# 763.572.3782
10130 Davenport St NE
Suite 160
Blaine MN 55449
United States
Choose options
THE BEST OF THE BEST JUST GOT BETTER
The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.
- LiveScope GLS 10 sonar black box
- LiveScope Plus LVS34 transducer
- Perspective mount (LiveScope Plus LVS34 Transducer Only)
- Trolling motor barrel mount
- Shaft mount
- Power cable
- 2 meter Garmin Marine Network cable (small connector)
- Network adapter cable
- Documentation
General |
|
| DIMENSION | GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm);LVS34 transducer: 6.4” x 3.1” x 1.9” (16.2 x 7.8 x 4.8 cm) |
|---|---|
| WEIGHT | GLS 10 sonar black box: 4.3 lbs (2.0 kg) LVS34 transducer: 2.25 lbs (1.02 kg) |
| WATERPROOF | IPX7 |
| TRANSDUCER BEAMWIDTH | 20° x 135° |
| TRANSDUCER CABLE LENGTH | 20 ft |
| TRANSDUCER NUMBER OF PINS | 21 |
| TEMPERATURE RANGE | GLS 10 Black Box: Operating: -15 C to 70 CPanoptix LiveScope LVS34 Transducer: Operating: 0 C to 40 C |
Sonar Features & Specifications |
|
| FREQUENCY | 530 - 1,100 kHz |
|---|---|
| MAXIMUM DEPTH | Down and Forward: 200’ (61.0 m) |
| SONAR TYPE | Live |
| TARGET SEPARATION @100' | 14" |
| PERSPECTIVE MODE MOUNT INCLUDED | |
Connections |
|
| GARMIN MARINE NETWORK PORTS | 1 (small connector) |
|---|---|
Electrical Features |
|
| POWER INPUT | 10-32 V |
|---|---|
| POWER USAGE | 21 W typical, 58 W max |
| TRANSMIT POWER | 500 W |
| FUSE | 7.5 A |
| COMPASS-SAFE DISTANCE | 4" (0.1 m) |
