Garmin GT30-TM and GT15M-IH Transducer Bundle 010-12763-10
Garmin GT30-TM and GT15M-IH Transducer Bundle 010-12763-10
Thorne Bros - 10091 Central Ave. - PH# 763.572.3782
10091 Central Ave NE
Blaine MN 55434
United States
Thorne Bros. Marine Electronics - 10130 Davenport St NE Suite 160 - PH# 763.572.3782
10130 Davenport St NE
Suite 160
Blaine MN 55449
United States
Choose options

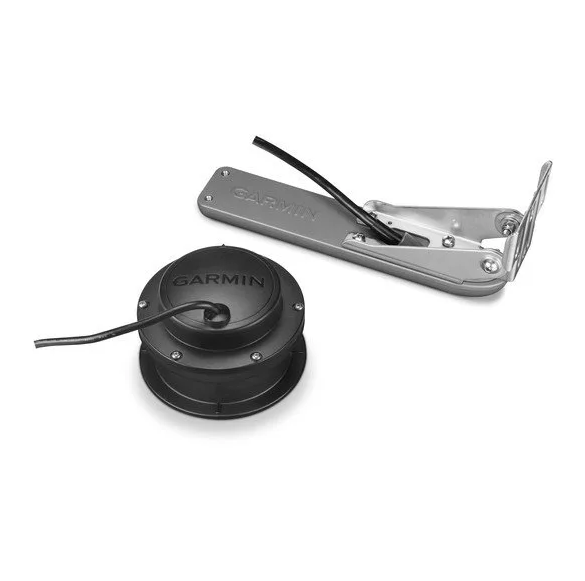

Perfect for the coastal and offshore fisherman who want CHIRP traditional sonar and CHIRP ClearVü and CHIRP SideVü scanning sonar, this bundle consistently displays clear and crisp fish arches with superior target separation as well as clear definition of objects, structure and fish that pass below and to the side of the boat. This bundle includes a GT15M-IH in-hull transducer, featuring mid-band CHIRP traditional sonar. The GT15M-IH is also an excellent choice for boats traveling at high speeds that want to maintain accurate depth readings. The GT30-TM transom mount transducer is also included and features CHIRP ClearVü and CHIRP SideVü scanning sonar.
This transducer bundle is ideal for fiberglass hulls with a deadrise of 0° to 25°.
- GT30-TM transducer specs:
- Frequency: ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
- Power: ClearVü/SideVü 500 W
- Beamwidth: ClearVü (1.4x53 @ 455 kHz) & (0.8x30 @ 800 kHz); SideVü (1.1x53 @ 455 kHz) & (0.7x30 @ 800 kHz)
- Maximum depth: ClearVü: 750 ft.; SideVü: 500 ft.
- Depth and Temperature
- Number of pins: 12-pin
- Cable length: 20 ft.
- Supported deadrise/Transom angles: 0°-70° degree transom
- GT15M-IH transducer specs
- Frequency: CHIRP Mid-band (85-165 kHz)
- Power: 600 W
- Beamwidth: 24-13
- Maximum depth: 1,900 ft. freshwater
- Depth only
- Number of pins: 8-pin
- Cable length: 20 ft.
- Supported deadrise: 0°- 25° deadrise
In the box:
- GT30-TM transducer with 12-pin connector
- 20 ft. transducer cable
- Transom mount
- Mounting hardware
- Documentation
- GT15M-IH transducer with 8-pin connector
- 20 ft. transducer cable
- 4 plastic in-hull tanks
- Documentation
- Y-cable (12-pin and 8-pin transducer to 12-pin sounder adapter cable)
