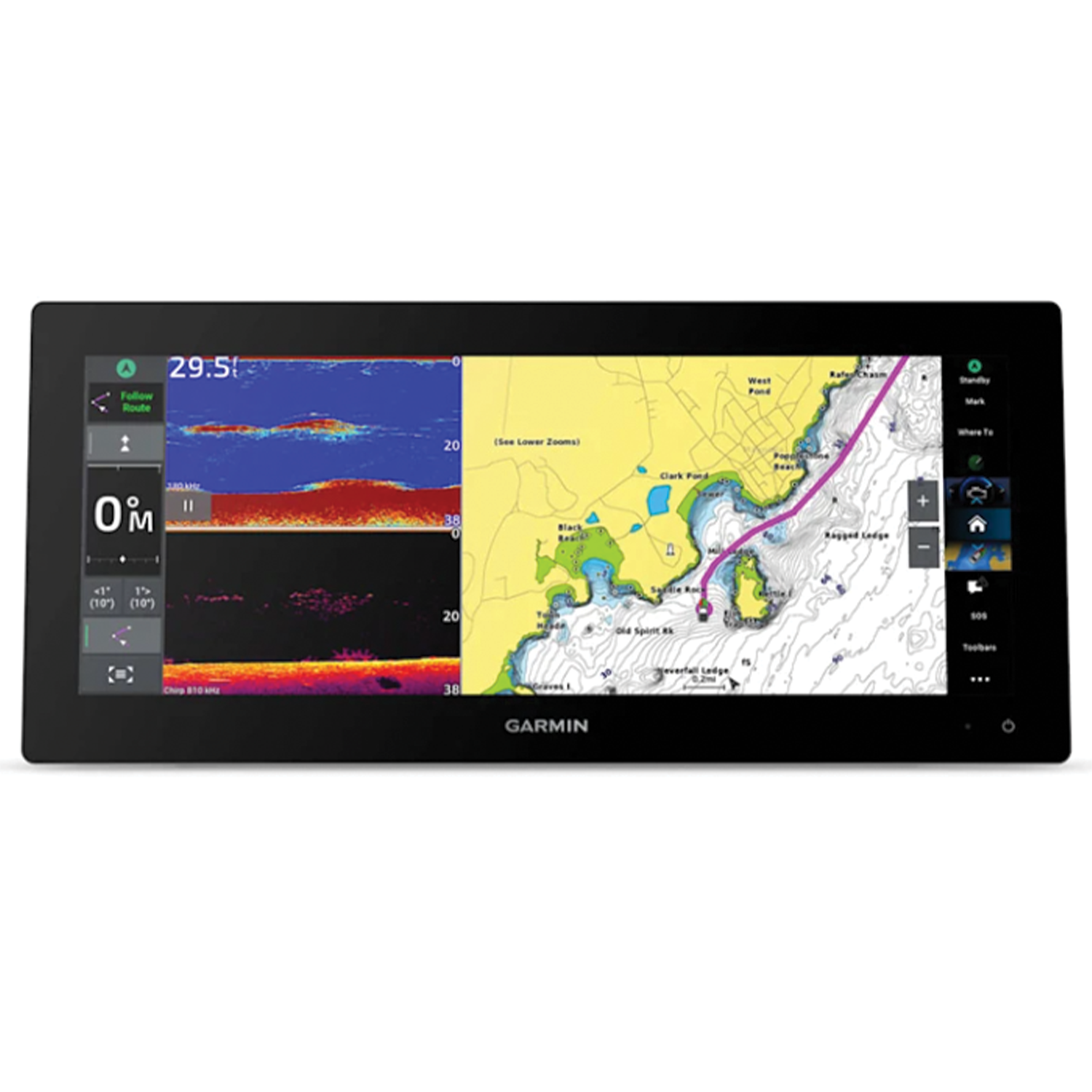

Garmin GPSMAP 1543xsv (WITH TRANSDUCER PORT)
Garmin GPSMAP 1543xsv (WITH TRANSDUCER PORT)
Thorne Bros - 10091 Central Ave. - PH# 763.572.3782
10091 Central Ave NE
Blaine MN 55434
United States
Thorne Bros. Marine Electronics - 10130 Davenport St NE Suite 160 - PH# 763.572.3782
10130 Davenport St NE
Suite 160
Blaine MN 55449
United States
Choose options
WIDEN YOUR HORIZONS
Offering a sleek aesthetic in an ultrawide edge-to-edge glass format, this advanced 15-inch chartplotter clearly expands your perspective at the helm. It is 74% wider and boasts more pixels than a standard 9-inch chartplotter, providing enhanced viewing clarity.
| Dimension | 15.3" x 7.02" x 3.3" (388.9 x 178.5 x 82.9 mm) |
|---|---|
| Weight |
7.2 lbs (3.26kg) |
| Water rating |
IPX7 |
| Touchscreen | |
| Display Type | Ultrawide display, IPS |
| Display Size | 13.6" x 5.1"; 14.5" diagonal (34.6 x 12.9 cm; 36.8 cm diagonal) |
| Display resolution | 1920 x 720 pixels |
| Mounting Options | Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
| Polarized lens viewability |
Yes |
Maps & Memory |
|
| Accepts Data Cards |
2 microSD™ cards (back of device) |
|---|---|
| Compatible with Garmin SD card reader | yes (USB card reader) |
| Waypoints |
5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Electrical Features |
|
| Power Input | 10 to 32 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 2.44 A |
| Maximum current draw at 12 Vdc | 4.21 A |
| Maximum power usage at 10 Vdc | 56.93 W |
