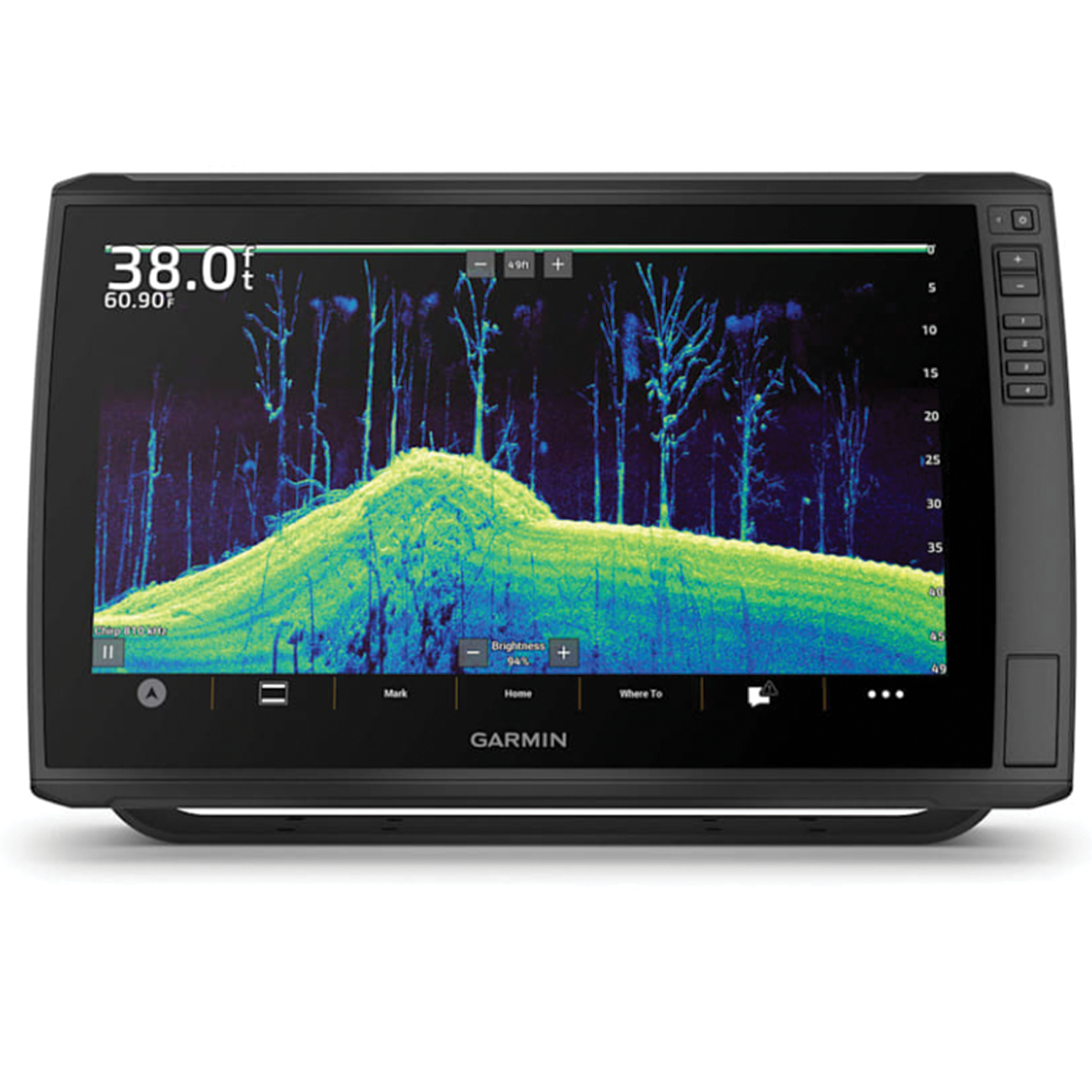

Garmin EchoMap 166SV UHD2 (No Transducer) marine electronics device with high-resolution color display showing underwater sonar imaging for fishing and navigation.

Garmin

Garmin EchoMap 166SV UHD2 (No Transducer)

$4,599.99
SKU: 010-03386-00
Size:EchoMap UHD2 166SV (NO TRANSDUCER)
Quantity:
Pickup available at Thorne Bros - 10091 Central Ave. - PH# 763.572.3782 Usually ready in 24 hours

Garmin EchoMap 166SV UHD2 (No Transducer)

EchoMap UHD2 166SV (NO TRANSDUCER)

Thorne Bros - 10091 Central Ave. - PH# 763.572.3782

Pickup available, usually ready in 24 hours

10091 Central Ave NE
Blaine MN 55434
United States

763-572-3782

Thorne Bros. Marine Electronics - 10130 Davenport St NE Suite 160 - PH# 763.572.3782

Pickup currently unavailable

10130 Davenport St NE
Suite 160
Blaine MN 55449
United States

+17635723782

SEE BIGGER CATCHES ON A BIGGER SCREEN



Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness and readability to your navigation mapping and sonar returns. Select models come preloaded with Garmin Navionics+™ mapping. Plus, there’s support for the full line of LiveScope™ sonars1 as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.

Dimension 16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm)
Weight

9.5 lbs (4.31 kg)
Water rating

IPX7
Touchscreen
Display Type FHD, IPS
Display Size 13.6" x 7.7"; 15.6" diagonal (34.5 x 19.5 cm; 39.7 cm diagonal)
Display resolution 1920 x 1080 pixels
Mounting Options Bail or flush
Input Touchscreen with Keyed Assist

Maps & Memory
Accepts Data Cards

2 microSD™ cards
Waypoints

5000
Track points 50,000
Tracks 50 saved tracks
Navigation Routes 100

Built-in Maps
Built-in Auto Guidance+ yes (see Additional)
Garmin Navionics+ Inland & Coastal yes (see Additional)
Tide tables yes (see Additional)

Electrical Features
Power Input 9 to 18 Vdc
Typical current draw at 12 Vdc 3.9 A
Maximum current draw at 12 Vdc 6.6 A
Maximum power usage at 10 Vdc 48 W

Sonar Features
Displays sonar
Power output 600 W
Traditional sonar (dual frequency/beam) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü Built-in 260/455/800/1000/1200 kHz
SideVü Built-in 260/455/800/1000/1200 kHz
Panoptix™ sonar
LiveScope
