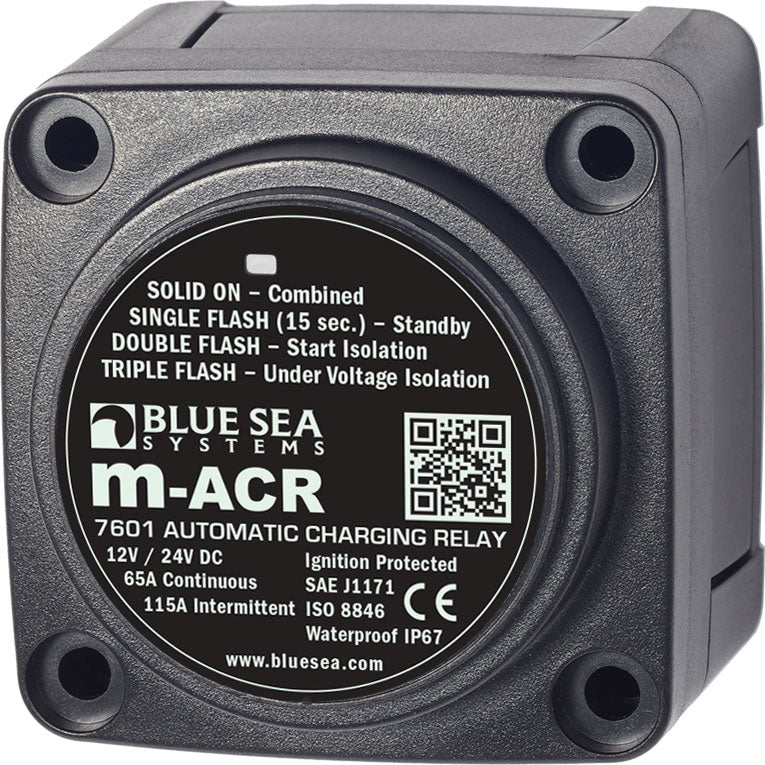

Blue Sea Systems m-Series Automatic Charging Relay - 12/24V DC 65A 7601 shown as a compact black marine electronic device with labeling detailing operational modes, waterproof rating, and safety certifications.

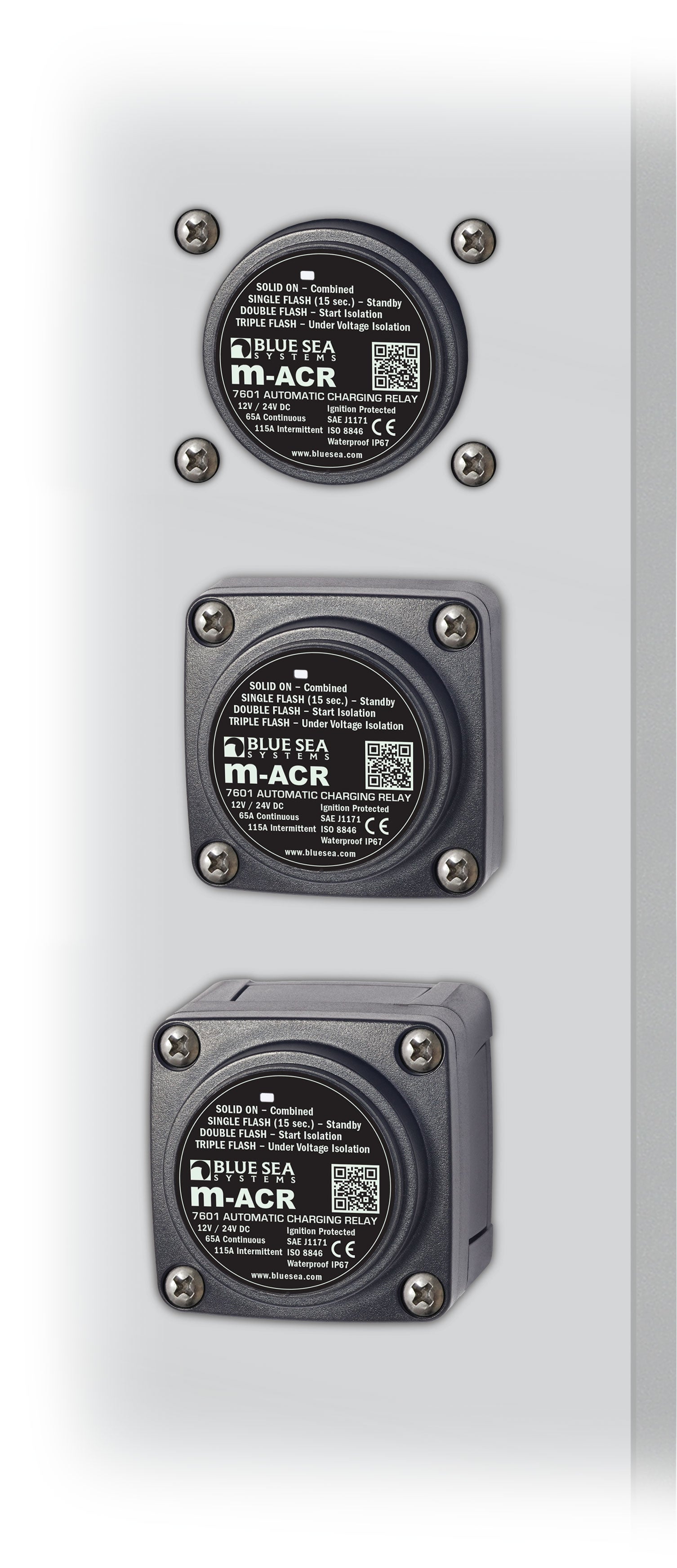

Three variations of Blue Sea Systems m-Series Automatic Charging Relay - 12/24V DC 65A 7601 in black, round and square waterproof cases, mounted on a white background with screws for marine electronics use.

Blue Sea Systems

Blue Sea Systems m-Series Automatic Charging Relay - 12/24V DC 65A 7601

$85.99
SKU: 7601
Quantity:
Pickup currently unavailable at Thorne Bros - 10091 Central Ave. - PH# 763.572.3782

Blue Sea Systems m-Series Automatic Charging Relay - 12/24V DC 65A 7601

Thorne Bros - 10091 Central Ave. - PH# 763.572.3782

Pickup currently unavailable

10091 Central Ave NE
Blaine MN 55434
United States

763-572-3782

Thorne Bros. Marine Electronics - 10130 Davenport St NE Suite 160 - PH# 763.572.3782

Pickup available, usually ready in 24 hours

10130 Davenport St NE
Suite 160
Blaine MN 55449
United States

+17635723782

The Mini Automatic Charging Relay (M-ACR) is designed to manage the charging current from alternators up to 65 Amps found on most outboards and many inboard engines.

Start Isolation (SI) protects sensitive electronics by temporarily isolating house loads from the engine circuit during engine cranking, protecting the house circuit from voltage sags and spikes.

The compact design allows for three mounting styles: surface, rear, or panel mount. The M-ACR is also available as a module in a Custom 360 Panel.

Features

  • Senses charging on two battery banks

  • Pull off and snap on insulating cover

  • LED indicates ACR status

  • 1 ∕4" x .032" male quick connect terminal for ground

  • 7∕ 16" (11 mm) stud length to accept multiple cable terminals

  • Waterproof – rated IP67 for temporary immersion
