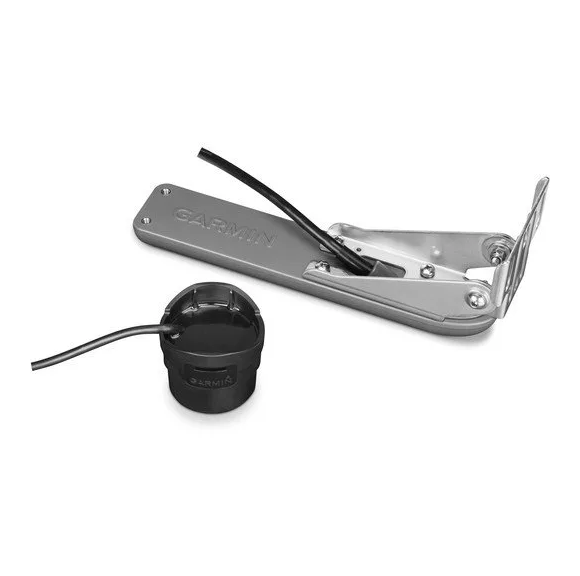

Garmin GT30-TM and GT8HW-IH Transducer Bundle 010-12763-00
Garmin GT30-TM and GT8HW-IH Transducer Bundle 010-12763-00
Fish-Lectronics
1109 County Road 10
Minneapolis MN 55432
United States
Perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP ClearVü and CHIRP SideVü scanning sonar, this bundle consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below and to the side of the boat. This bundle includes a GT8HW-IH in-hull transducer, featuring high-wide CHIRP traditional sonar. The GT8HW-IH model is also an excellent choice for boats traveling at high speeds that want to maintain accurate depth readings. The GT30-TM transom mount transducer is also included and features CHIRP ClearVü and CHIRP SideVü scanning sonar.
This transducer bundle is ideal for fiberglass hulls, with a deadrise of 0° to 6°, where fishermen want traditional sonar at high speeds.
- GT30-TM transducer specs:
- Frequency: ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
- Power: ClearVü/SideVü 500 W
- Beamwidth: ClearVü (1.4x53 @ 455 kHz) & (0.8x30 @ 800 kHz); SideVü (1.1x53 @ 455 kHz) & (0.7x30 @ 800 kHz)
- Maximum depth: ClearVü: 750 ft.; SideVü: 500 ft.
- Depth and Temperature
- Number of pins: 12-pin
- Cable length: 20 ft.
- Supported deadrise/Transom angles: 0°-70° degree transom
- GT8HW-IH transducer specs
- Frequency: CHIRP High Wide (145-230 kHz)
- Power: 250 W
- Beamwidth: 24-16
- Maximum depth: 800 ft. freshwater
- Depth only
- Number of pins: 8-pin
- Cable length: 20 ft.
- Supported deadrise: 0°- 6° deadrise
- GT30-TM transducer with 12-pin connector
- 20 ft. transducer cable
- Transom mount
- Mounting hardware
- Documentation
- GT8HW-IH transducer with 8-pin connector
- 20 ft. transducer cable
- In-hull fitting
- Documentation
- Y-cable (12-pin and 8-pin transducer to 12-pin sounder adapter cable)
